Model: BLF18-00 Gas proportional valve with moving iron core
The Japanese gas proportional valve for fireplaces with double shut-off valve has a high safety performance, compact structure, exquisite appearance, excellent performance and reliability, more comfortable and precise adjustment and control to save energy.
Water heater proportional valves
Model: BLF18-00 Gas proportional valve with moving iron core
Performance parameters
| Applicable gas types | Natural gas, liquefied gas, manufactured gas | |
| Operating ambient temperature | Below 6kPa | |
|
On Close Valve |
Rated voltage | DC24V |
| Operating voltage (Pressurised 5kPa ) |
≤DC20V | |
| Release voltage (Pressurised 5kPa)| |
DC3.6~8V | |
|
Ratio Example Valve |
Rated voltage | DC24V |
| Operating current range | 120mA~ 200mA(DC pulse) | |
|
Air airtight Airtightness |
Valve one leaks | ≤30mL/h (pressurised to 15kPa) |
| Valve II leakage | ≤30mL/h (pressurised to 4.2kPa) | |
| Overall leakage | ≤30mL/h (pressurised to 4.2kPa) | |

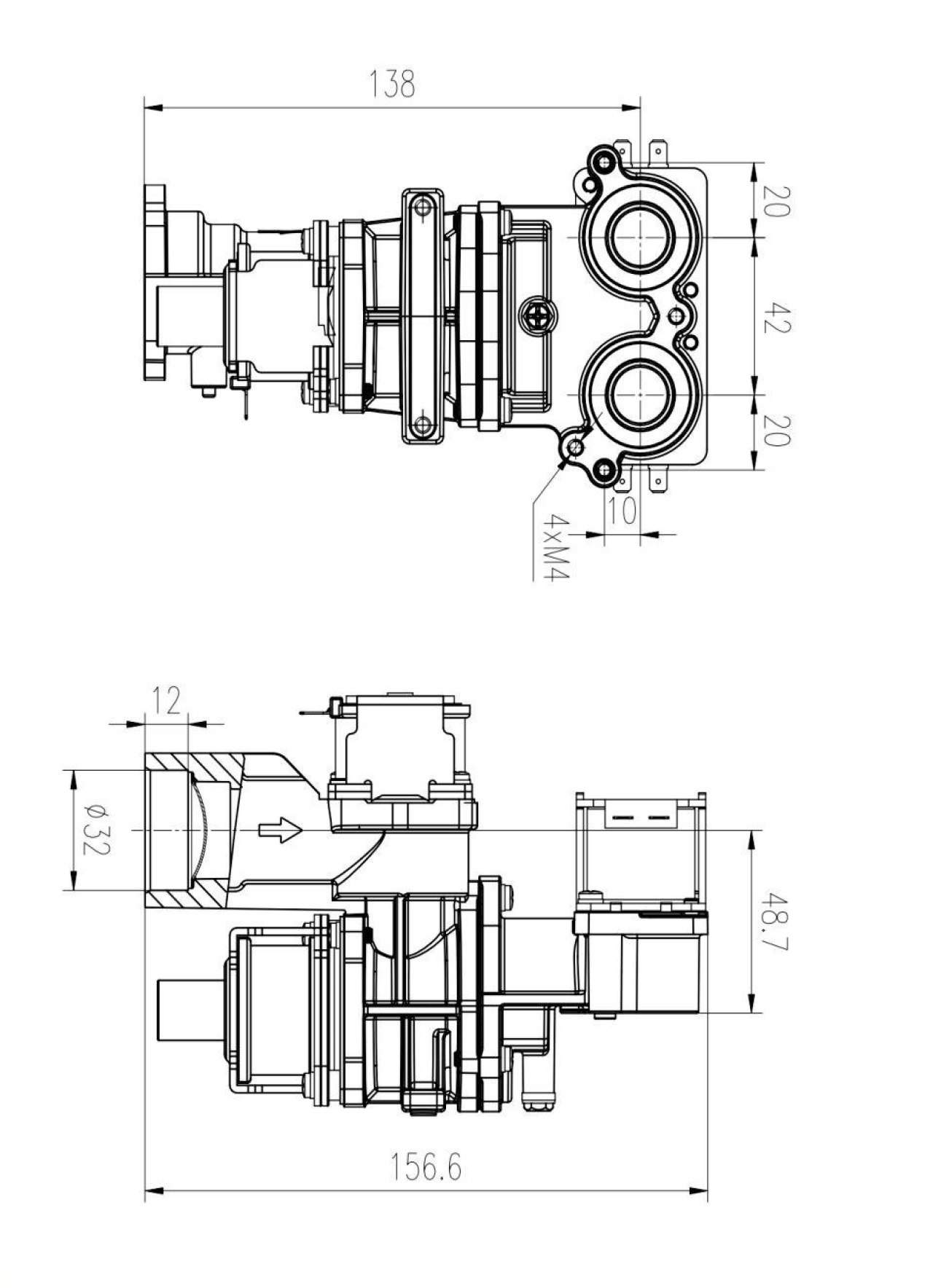

Structural sketch
