Model: 936 (Large valve for water heater)
Self-developed and manufactured gas water heater proportional valve, with ultra-high safety performance, compact structure, saving overall space, exquisite appearance, precise adjustment curve, adjustment control more comfortable and precise energy saving.
Water heater proportional valves
Model: 936 (Large valve for water heater)
Performance parameters
| Applicable gas types | Natural gas, liquefied gas, manufactured gas | |
| Max. gas pressure | Below 6kPa | |
| Operating ambient temperature | -20～+60℃ | |
|
On Close Valve |
Rated voltage | DC24V |
| Operating voltage (Pressurised 5kPa ) |
VD≤19V | |
| Release voltage (Pressurised 5kPa)| |
≥3.6V | |
|
Ratio Example Valve |
Rated voltage | DC24V |
| Operating current range | 120mA~ 230mA | |
|
Air airtight Airtightness |
External leakage | 15kPa±5% air pressure, leakage ≤ 30ml/h |
| Internal leaks | 6kPa±5% air pressure, leakage ≤ 30ml/h | |

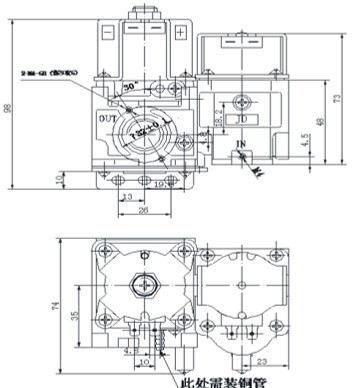

Structural sketch
