Model：933-24V
The gas water heater proportional valve, developed and produced in-house, has a high safety performance, compact structure, saving overall space, integrated design of the joint, reducing the hidden danger of gas leakage, exquisite appearance, precise adjustment curve, more comfortable and precise adjustment and control to save energy.
Water heater proportional valves
Model：933-24V
Performance parameters
| Applicable gas source types | Natural gas, liquefied gas, manufactured gas | |
| Max. gas pressure | Below 6KPa | |
| Operating ambient temperature | - 20~+60C | |
|
On Close Valve |
Rated voltage | DC24V |
| Operating voltage (Pressurised 5KPa ) |
VD≤19V | |
| Release voltage (Pressurised 5KPa)| |
≥3.6V | |
|
Ratio Example Valve |
Rated voltage | DC24V |
| Operating current range | 120mA~ -200mA; | |
|
Air airtight Airtightness |
External leakage | 15Kpa soil 5% air pressure. Leakage ≤ 30ml/h |
| Internal leaks | 6Kpa soil 5% air pressure. Leakage ≤ 30ml/h |
|

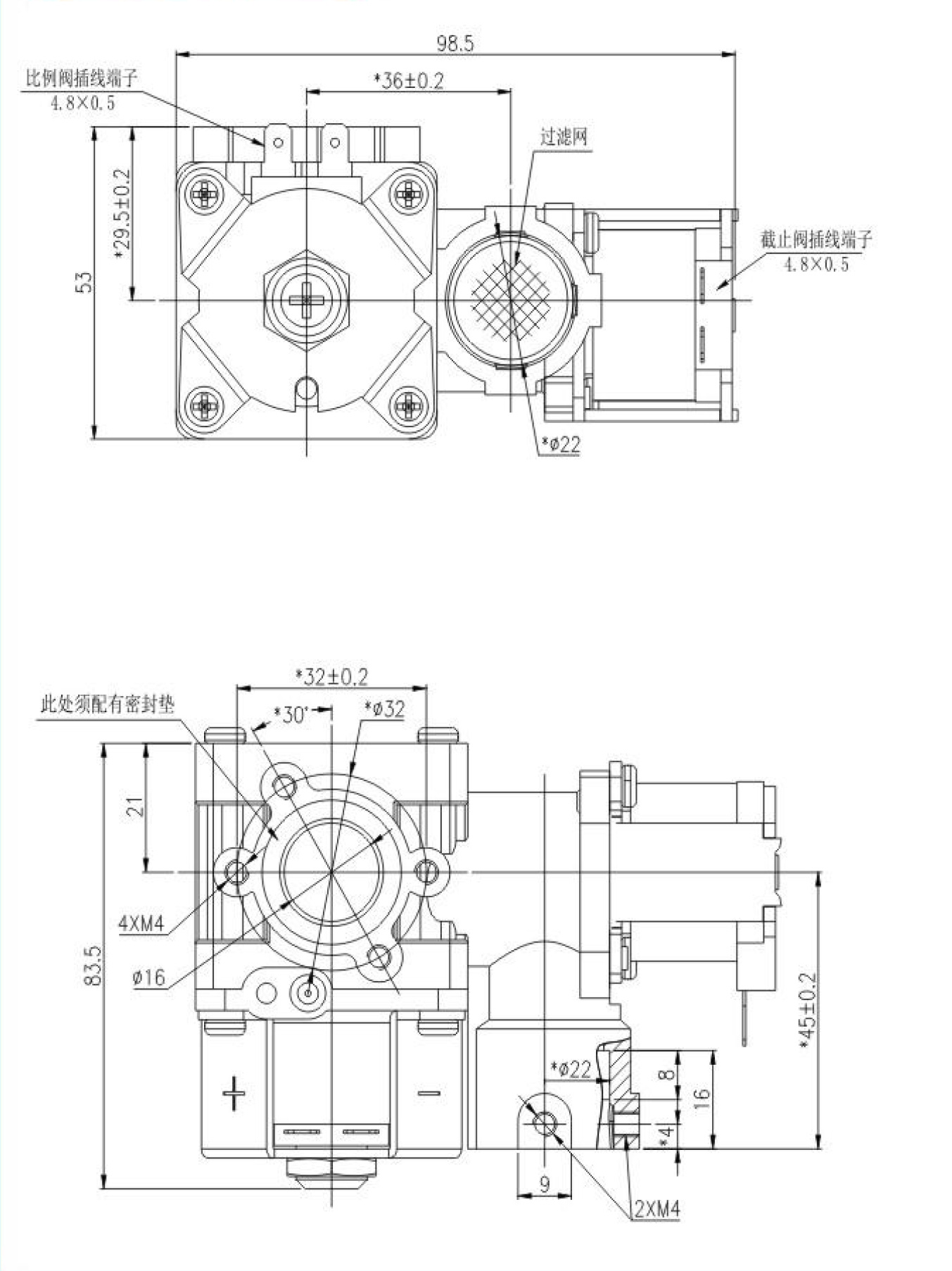

Structural sketch
