Model：933-24V

The gas water heater proportional valve, developed and produced in-house, has a high safety performance, compact structure, saving overall space, integrated design of the joint, reducing the hidden danger of gas leakage, exquisite appearance, precise adjustment curve, more comfortable and precise adjustment and control to save energy.

Water heater proportional valves

15390953397

MESSAGE

Model：933-24V

Performance parameters

Applicable gas source types		Natural gas, liquefied gas, manufactured gas
Max. gas pressure		Below 6KPa
Operating ambient temperature		- 20~+60C
On Close Valve	Rated voltage	DC24V
	Operating voltage (Pressurised 5KPa )	V_D≤19V
	Release voltage (Pressurised 5KPa)\|	≥3.6V
Ratio Example Valve	Rated voltage	DC24V
Ratio Example Valve	Operating current range	120mA~ -230mA;
Air airtight Airtightness	External leakage	15Kpa soil 5% air pressure. Leakage ≤ 30ml/h
	Internal leaks	Switching valve 6Kpa soil 5% air pressure. Leakage ≤ 20ml/h
	Internal leaks	Proportional valve 6Kpa ＆ 5% air pressure Leakage ≤ 30ml/h

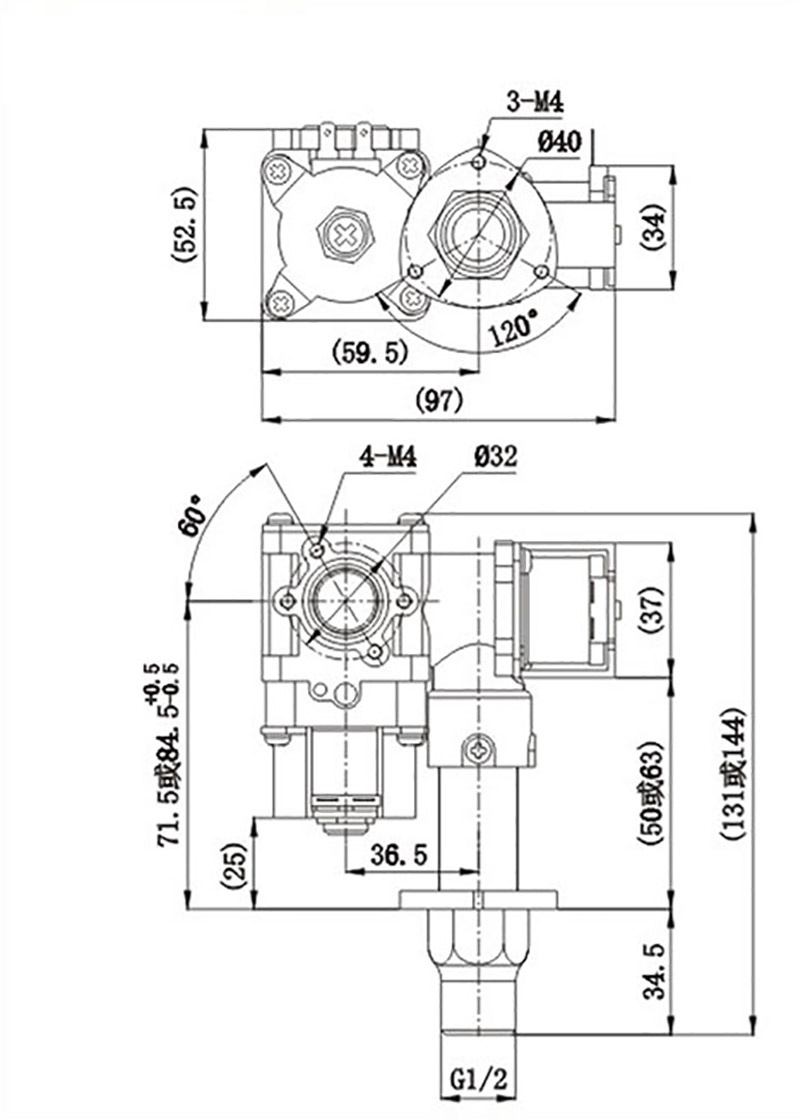

Structural sketch

Model：933-24V
