Model：JW 206-220V / JW 203-110V / JW 201-24V
The main function of the regulator is to depressurise and stabilise the pressure of the gas source to a constant value so that the regulating valve can be powered by a stable gas source for regulation and control.
Regulators
Model：JW 206-220V / JW 203-110V / JW 201-24V
Performance parameters
| Applicable gas source types | Natural gas, liquefied gas, manufactured gas | |||
| Max. gas pressure | Below 6KPa | |||
| Operating ambient temperature |
-20~+60℃ |
|||
|
On Close Valve |
Rated voltage |
DV24V |
DC110V |
DC220V |
|
Operating voltage (Pressurised 5KPa ) |
VD≤19V |
VD≤85V |
VD≤185V |
|
|
Release voltage (Pressurised 5KPa) |
≥3.6V |
≥16.5V | ≥35V | |
|
Air airtight Airtightness |
External leakage | 15Kpa soil 5% air pressure. Leakage ≤ 30ml/h |
||
| Internal leaks | 6Kpa soil 5% air pressure. Leakage ≤ 30mI/h |
|||

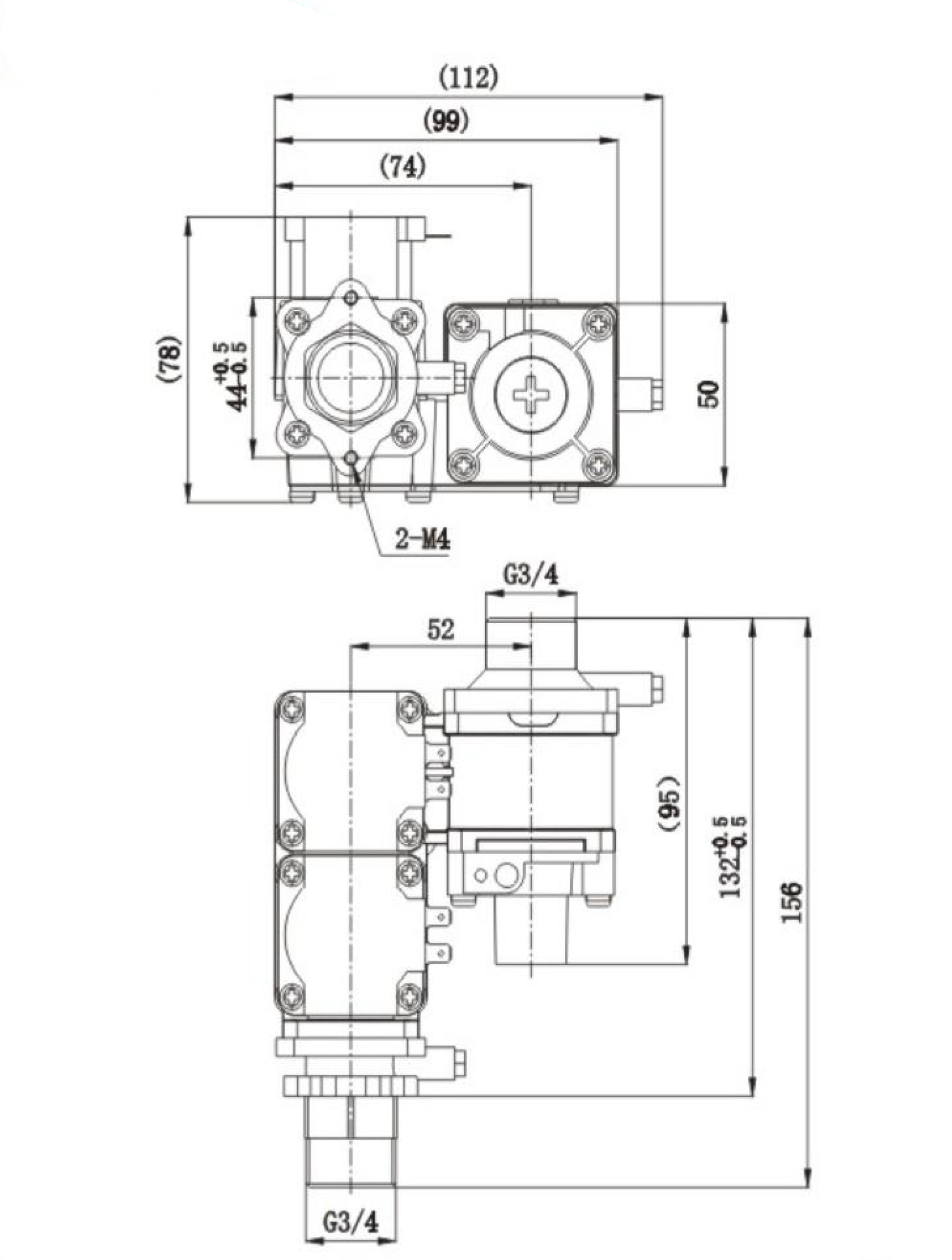

Structural sketch
