Model: Piezoelectric proportional valve
Independently developed full premix combustion system and control system for the whole engine, highly adaptable to fuel and environment, wide power ratio, stable combustion, low nitrogen, beyond the national level energy efficiency to 110% thermal efficiency, ultra-low carbon monoxide emissions not exceeding 50ppm
Piezoelectric proportional valves
Model: Piezoelectric proportional valve
Performance parameters
| Applicable gas source types | Natural gas, liquefied gas | |
| Max. gas pressure | Below 6 kPa | |
| Applicable water pressure | Up to 0.8 MPa | |
| Start-up water pressure | 0.05 MPa or less | |
| Big Water Meteor | 660L/ H | |
| Little Water Meteor | 300L/ H | |
| Airtightness | ≤30mL/H | |
| Open valve current | ≤200 mA | |
| Closed valve current | ≤40 mA | |
| Proportional adjustment | Water and gas interconnection | |

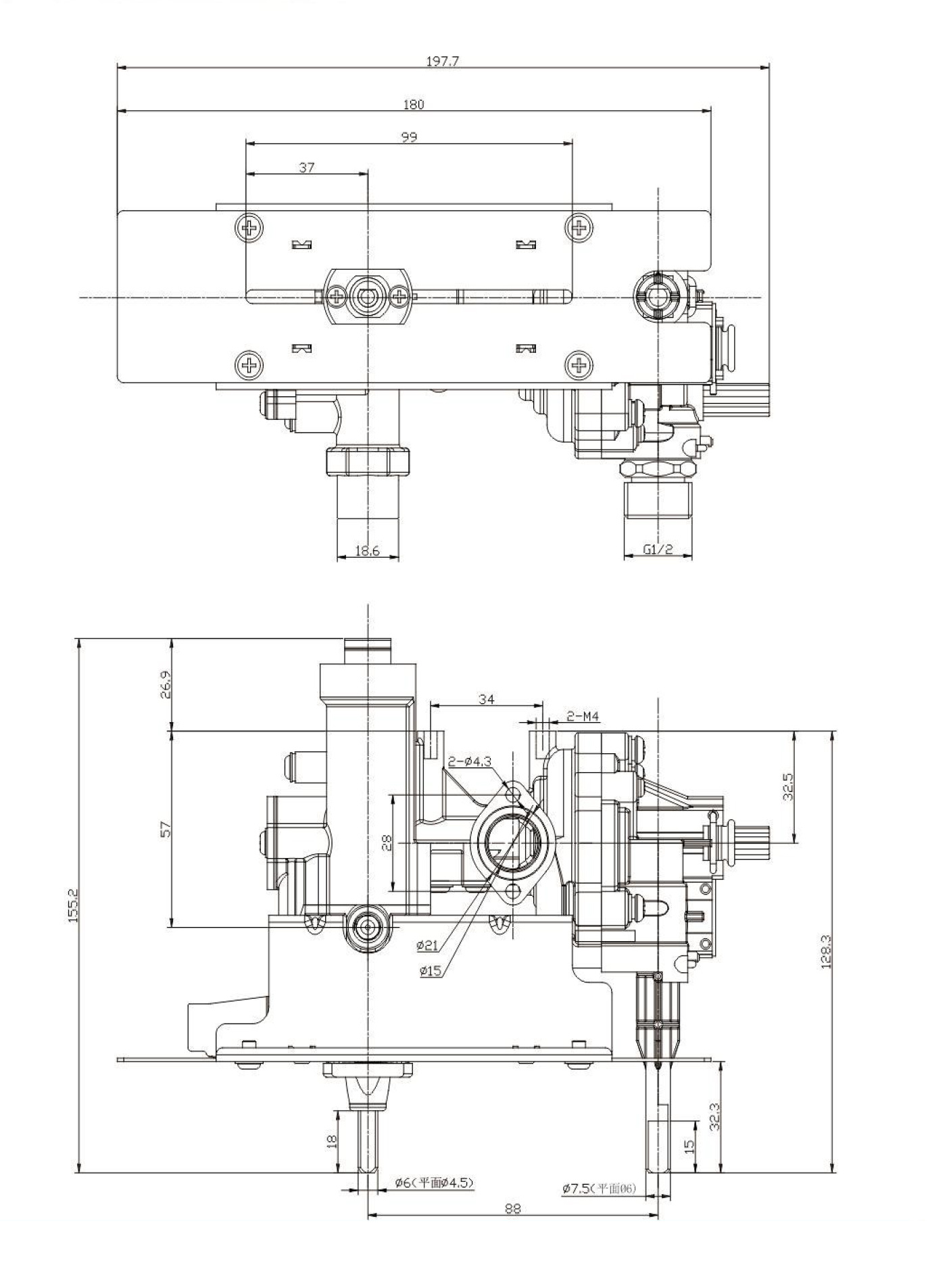

Structural sketch
