Model：360-AC 220V / 365-DC 220V
The European-style proportional valve of the wall-hung boiler, which is self-developed and produced, has super high safety performance, compact structure, servo pressure regulator to provide stable gas outlet pressure, pressure feedback to ensure the combustion pressure, adjusting and controlling more comfortably and precisely to save energy.
European style gas valve
Model：360-AC 220V / 365-DC 220V
Performance parameters
| Applicable gas source types | Natural gas, liquefied gas, manufactured gas | |
| Max. gas pressure | Below 6KPa | |
| Operating ambient temperature | - 20~+60℃ | |
|
On Close Valve |
Rated voltage | DC220V |
| Operating voltage (Pressurised 5KPa ) |
VD≤185V | |
| Release voltage (Pressurised 5KPa)| |
≥35V | |
|
Ratio Example Valve |
Rated voltage | DC13.2V |
| Operating current range | 165mA | |
|
Air airtight Airtightness |
External leakage | Switching valve 6Kpa soil 5% air pressure. Leakage ≤ 30ml/h |
| Internal leaks | Proportional valve 6Kpa ＆ 5% air pressure Leakage ≤ 30ml/h |
|

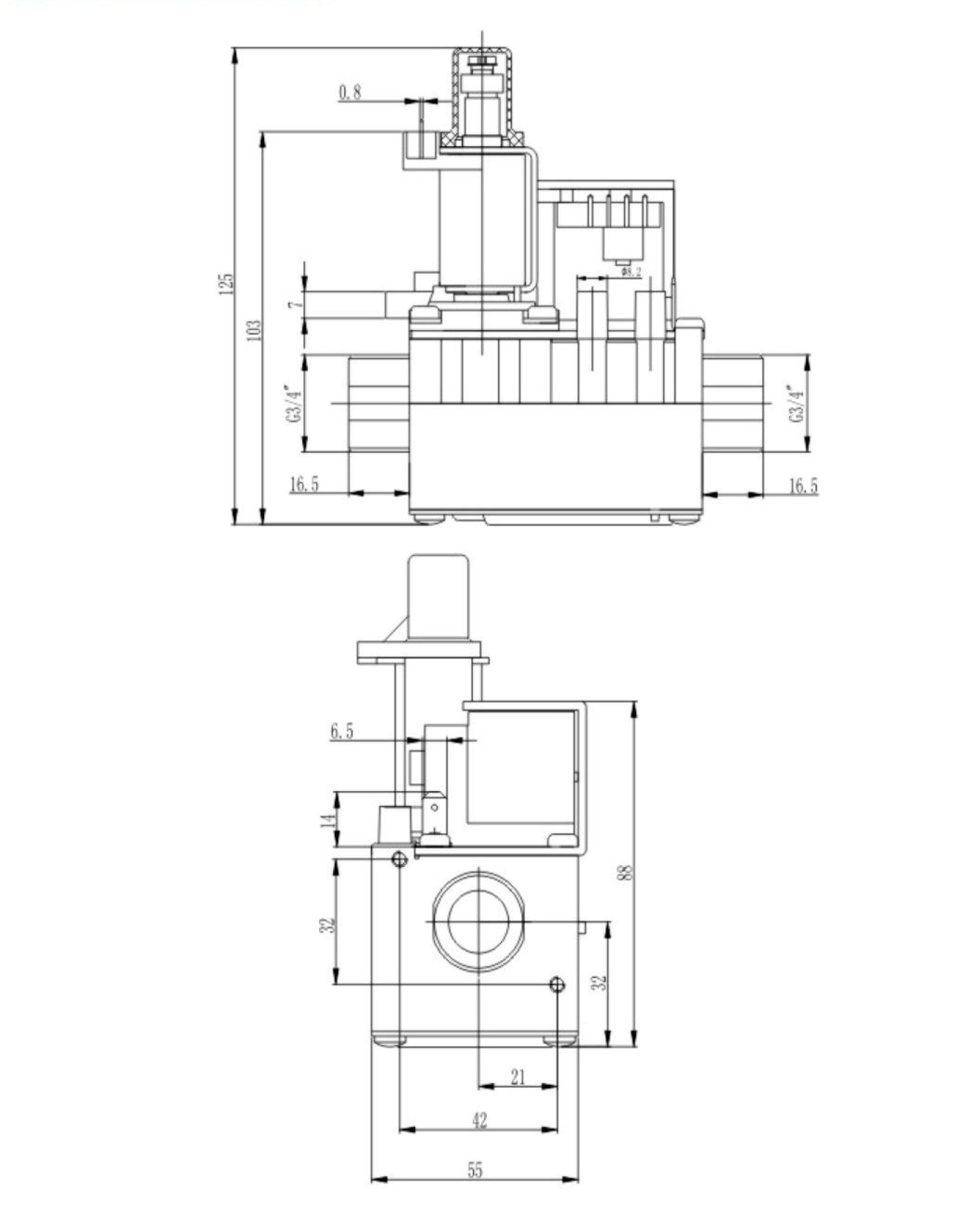

结构简图
