Model：ZS168- AC220V / ZS169- DC220V
Independently developed full premix combustion system and control system for the whole engine, highly adaptable to fuel and environment, wide power ratio, stable combustion, low nitrogen, beyond the national level energy efficiency to 110% thermal efficiency, ultra-low carbon monoxide emissions not exceeding 50ppm
Adaptive fully premixed proportional valves
Model：ZS168- AC220V / ZS169- DC220V
Performance parameters
| Applicable gas source types | Natural gas, liquefied gas, manufactured gas | |
| Max. gas pressure | Below 6kPa | |
| Operating ambient temperature | - 20~+60℃ | |
|
On Close Valve |
Rated voltage | DC220V |
| Operating voltage (Pressurised 5kPa ) |
VD≤185V | |
| Release voltage (Pressurised 5kPa)| |
≥35V | |
|
Ratio Example Valve |
Rated voltage | DC12V |
| Operating current range | 300mA | |
|
Air airtight Airtightness |
External leakage | 15kPa soil 5% air pressure. Leakage ≤ 30ml/h |
| Internal leaks | 6kPa ＆ 5% air pressure. Leakage ≤ 30ml/h |
|

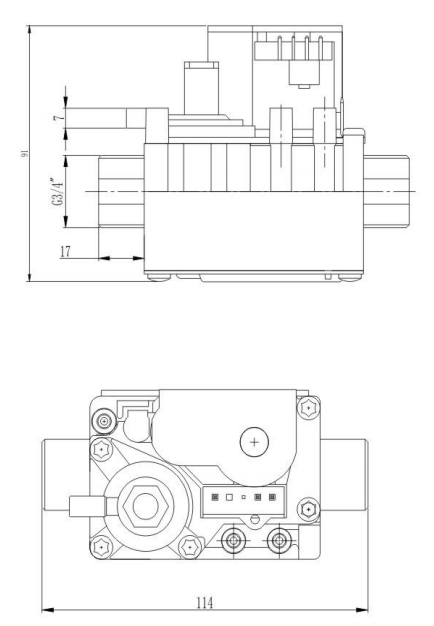

Structural sketch
